Wednesday, April 24, 2013

Development of Elevations & Fenestration

I sketched out ways to create circulation based on the last study model (made of blue foam) then brought it into section and elevation...


This is the 3D model I've been working on that's mainly based on the last study model and my sketches (made of blue foam)...






Sunday, April 21, 2013

Refinement of Plans and Sections

Based on my site layout and circulation I modified my previous plans and added 2 sections to reflect site conditions and possibly what I would like to do with the site massing, orientation and circulation.

PLANS

SECTIONS

Because Red Hook is located in Coastal Flood Zone V (the most severe flood zone), my building must be elevated by at least 3 feet or more from street level. This building regulation has therefore created a new criteria for my program which will be a beach, where students and faculty can take samples of water and bacteria life within the water or on the coast for further analytical studies. I also added a dock for access to boats that can also be used for analytical experimentation.

Monday, April 15, 2013

Massing Model on Site Model

Street View

Perspective View


Aerial View

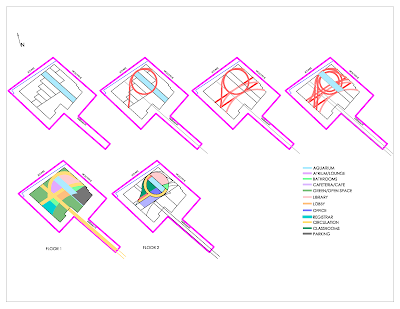

Processing Floor Plans

This process was derived from my most recent massing model showing how I plan to work with the space on the site in floor plans...(to be continued).

Sunday, April 7, 2013

Hybrid Models Pt. III



Combining the 3D model of the shell hybrid and the square footage model resulted in...

The New Hybrid


This model is a hybrid of the 3D model and the square footage model. I decided to add extrusions on the back elevation (the side facing the water) to symbolize an infinite connection and the walls on the front elevation symbolize resistance.

Square Footage Diagram and Model

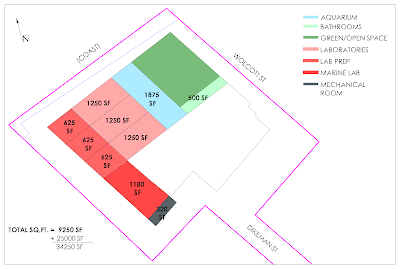

I created a square footage diagram and model to portray the space and height I will be working with in order to incorporate my concept on the site. The scale is 1/32" = 1'-0".

Floor 1

Floor 2

Floor 3

Floor 4



Square Footage Model







In conclusion, the model helped me to notice the restrictions with space that's going to cause me to have to make some adjustments to my design concept.

Hybrid Models Pt. II

The next step in this process is combining the program with the abstract hybrid model to get a sense of how you’re going to work with the space on the site. So I had to create a new model, keeping the shell hybrid as a study model for the new model, and scaled it down to the scale of the site, which is 1/32” = 1’-0”.

Shell Hybrid


2D Model of Hybrid

This model is a basic outline of the shell in elevation.

3D Model of Hybrid

This model is a 3-dimensional version of the previous model, which incorporates a wave effect that stems from the curves of my 2D model.
I feel like this model has so much potential because waves are uncontrollable since they are a part of nature. So thinking about how I can turn this study model into a structure, I can foresee extruding various cubes and maybe extending field lines or vectors from the others. What I love about this model is how captivating it is from every angle the same way it is when I see the waves at the beach. I also want to try to incorporate a sense of feeling when one interacts with the building as someone would with a wave, whether you’re swimming, surfing, sailing, etc. For example, this model reminds me of my first time surfing and how it was an experience that I’ll never forget because you paddle out to the ocean, which can represent that steady moment in the model that’s parallel to the surface. Then you encounter a few small waves, which can represent the first few raised cubes. But when you encounter that one wave that you decide is “the one” you’re going to go for, this rush of adrenaline comes over you, which is the cube perpendicular to the surface symbolizing the climax. And then, gradually, you come back down as the wave returns you to shore. So the first floor of my building can represent ‘paddling out’, circulation such as stairs, ramps or elevators will represent ‘the small waves’ and then the top floor will represent ‘the one’/adrenaline. That floor will contain various views from the coast to downtown Manhattan, Governors Island, downtown New Jersey, the Statue of Liberty and, of course, the water. I basically want my building to tell the story of a wave that makes a connection.
